We started with a seasoned factory Volkswagen forged 40hp crank and perform a thorough inspection checking for wear and cracks. Once the integrity is confirmed the cranks that pass the inspection are then shot-peened. The bearing journals are then precision ground and mirror polished to the next serviceable bearing size under.
This crankshaft is designed to fit a 1200cc motor, commonly refereed to as a 40hp, produced from 1961 to 1965.
Main Journals: 2.155″ (54.75mm) = .010″ (.25mm) Undersized
Rod Journals: 2.155″ (54.75mm) = .010″ (.25mm) Undersized
• Core Charge Applies: Please remove key-ways from your core prior to return
*NOTE* Understand that motors are very interchangeable on VW’s. Please ask questions and do your research to confirm that you have the style and size motor that you think you have. So. Cal. Imports cannot be held responsible for shipping cost for parts ordered incorrectly.

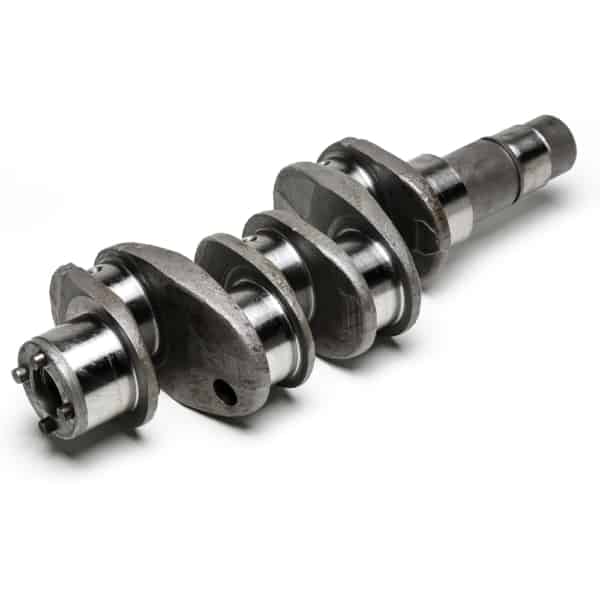

*Crank in photo for representation only and not of the specific item you are purchasing.
